Fiido T1 PRO Story
Insufficient power and range have long been concerns for cargo ebike users. In response, we developed the T1 Pro after careful research. Equipped with a peak power motor of 923.6W and a 960Wh battery, it effortlessly handles steep slopes and long distances. Its one-piece wheels eliminate worries about spoke breakage under heavy loads. By focusing our efforts where it matters, we've also achieved excellent value. The T1 Pro is a powerful, warrior-like ebike that we are proud of.
Features

Payload Capacity
Supports a maximum weight capacity of 200kg.

Super Large Battery
With a 960Wh battery, enjoy a remarkable range of up to 150 km.

Wild Expedition
Craving for faster speeds? The T1 PRO can reach a top speed of 45 km/h.

Powerful Motor
The 60Nm brushless motor with throttle control propels you to thrilling speeds of up to 25km/h.

Hydraulic Disc Braking System
Outstanding stopping power, ensuring your safety.

One-Piece Wheels
Stronger, greater load capacity and maintenance-free.

Real-world Range Testing

The Brand
We listen to our customers, whose insights flow into our lab and merge with with our creativity and expertise. Fiido's mission is to create practical and artistic e-bikes that truly respond to customer needs. By optimizing R&D and supply chains, we also make e-bikes more affordable. This commitment has made us one of the fastest growing e-bike brands in the world.
Mode | Avg. Speed (km/h) | Range (km) |
Full Throttle | ||
Preset | 23.8 | 96.89 |
After Unlocked | 34.79 | 48.06 |
Pedal Assist | ||
ECO | 22.03 | 150 |
Normal | 23.77 | 132 |
Sport | 23.64 | 113.4 |
Turbo | 24 | 99 |
Turbo+ | 24.56 | 92 |
Specifications
-

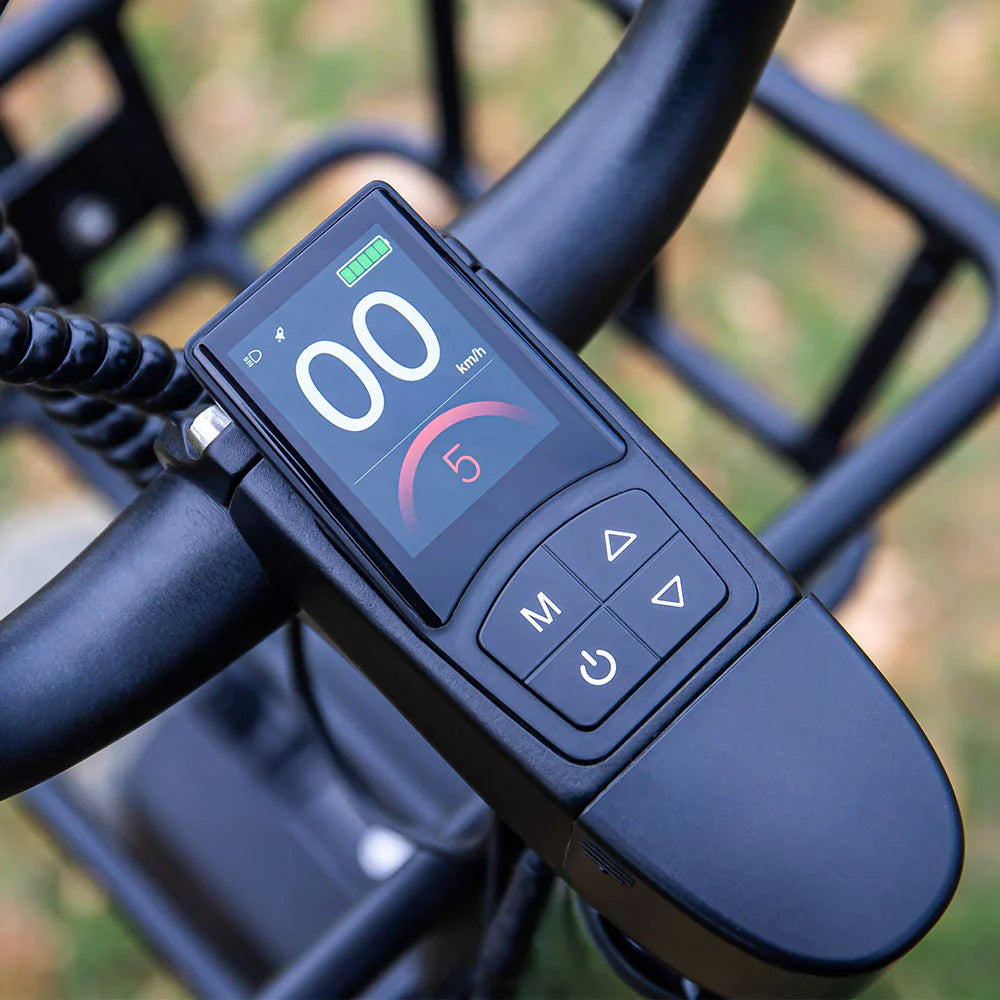

DETAILS Model Name T1 PRO Model Code T1 PRO Net Weight 35.6 kg Payload 200 kg FRAMESET Frame 20-inch aluminum alloy frame Fork Aluminum alloy hydraulic shock-absorbing front fork (suspension travel 60mm) with 135mm opening width Headset Aluminum alloy bearing headset E-SYSTEM Drive Unit 750W integrated wheel brushless geared motor Battery DMEGC 960Wh Charger 48V3A Display LCD 2.4 inch DRIVETRAIN Rear Derailleur SHIMANO TY300D Shifters 7-speed Chain KMC Z7 Crank Aluminum alloy 52T Rear Cogs SHIMANO TZ500 7S (14-28T) Sensor 12-magnet speed sensor BRAKES Brakes Dual-piston hydraulic disc brake with power cut-off Brake Levers Aluminum alloy three-finger brake lever WHEELS Front Hub Magnesium alloy integrated wheel with dual bearings (detachable axle M10135185mm) Rims / Spokes / Tires CST 20*4.0 COMPONENTS Handlebar Aluminum alloy (Length: 680mm; Maximum diameter: 25.4mm; Minimum diameter: 22.2mm) Stem Aluminum alloy stem Grips TPR non-slip handle grip (Length: about 130mm) Saddle VELO vacuum full-fit saddle Seatpost Aluminum alloy clamp head seatpost (Length: 400mm; Diameter: 33.9mm)
Geometry
All measurements provided in mm unless otherwise noted.
Rider heights | 5'1" (155cm) - 6'7" (200cm) |
Wheel size | CST 20*4.0 |
A-Seat tube | 328 |
B-Seat tube angle | 74.4° |
C-Head tube | 260 |
D-Head angle | 72° |
E-Top tube length | 602 |
F-Standover height | 463 |
G-BB drop | 0 |
H-Rear Center | 535 |
I-Wheelbase | 1210 |
J-Reach | 423 |
K-Stack | 647 |
L-Maximum seat height | 1180 |
M-Minimum seat height | 930 |
N-Rear rack height | 670 |
O-Total length | 1780 |
P-Handlebar height | 1200 |
Q-Handlebar length | 690 |
R-Rear rack length | 475 |
S-sear rack outer diameter length | 424 |
T-Rear rack width | 160 |
